SKU:83972171

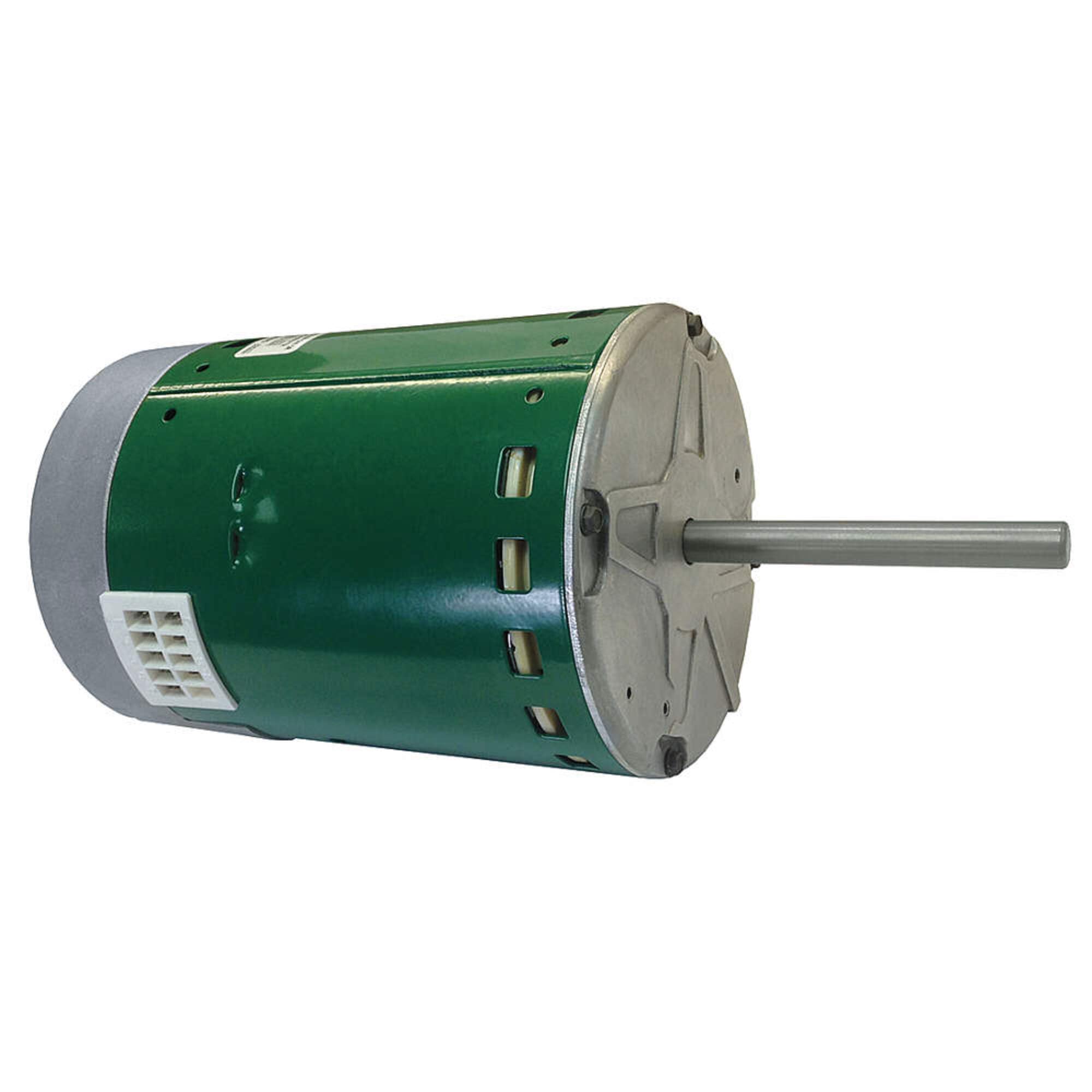

' ECM Direct Drive Blower Motor, ECM, Motor Enclosure Design Open Air-Over, 1/3 HP, 1200 Nameplate RPM, 48 Frame, Voltage 208-230, Hz 60/50, 1 Phase, Full Load Amps 2.8, Motor Mounting Type Band, None Motor Thermal Protection, Ins. Class B, Motor Shaft Rotation CW/CCW, Ball Motor Bearings, Motor Service Factor 1.00, Ambient Temperature -20 Degrees to 55 Degrees C, Max. Ambient Temp. 40 Degrees C, Frame Material Rolled Steel, Overall Length 10-3/16 In., Length Less Shaft 5-1/4 In. '
Price For Each Motor Shaft Design Flat Motor Service Factor 1.00 Frame 48 Motor Bearings Ball Motor Enclosure Design Open Air-Over Phase 1 Ins. Class B Motor Mounting Type Band Capacitor Required No Motor Sub Application Direct Dr Fan/Blower Motor Application HVAC/R Item ECM Direct Drive Blower Motor Motor Design ECM Shaft Dia. 1/2"
Duty Continuous Standards UL Recognized (E46035, E27885, E306343), CSA Certified (MC236833) Includes Wiring Harness Plug Type Wiring Harness Voltage Compatibility 115/208-230, 208-230, 208-240 Application Direct Drive Blower Motor Shaft Rotation CW/CCW Motor Thermal Protection None Motor Mounting Position All Angle No. of Speeds 5 Max. Ambient Temp. 40 Degrees C
Ambient Temperature -20 Degrees to 55 Degrees C Overall Length 10-3/16" Hz 60/50 Body Dia. 5-3/4" Nameplate RPM 1200 Length Less Shaft 5-1/4" Frame Material Rolled Steel HP 1/3 Voltage 208-230 Full Load Amps 2.8 Shaft Length 4-15/16" Country of Origin (subject to change) Mexico
