SKU:67089965

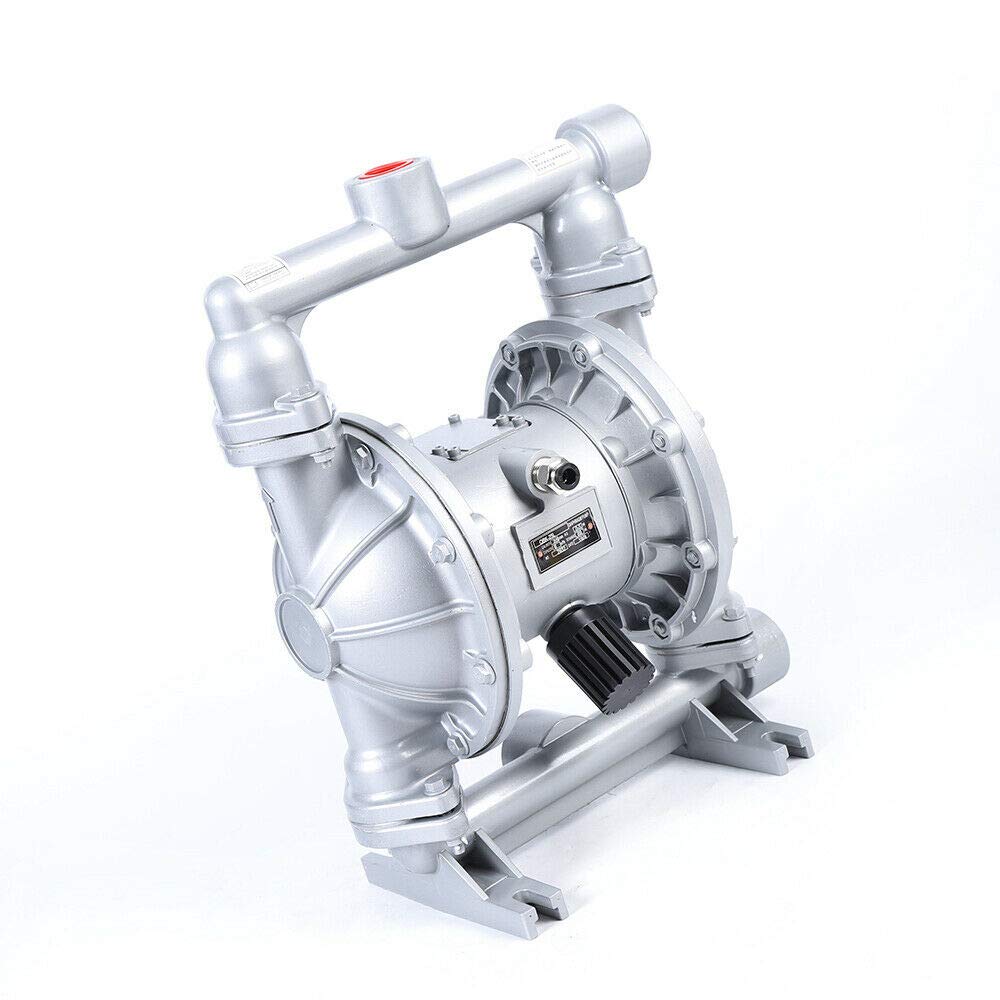

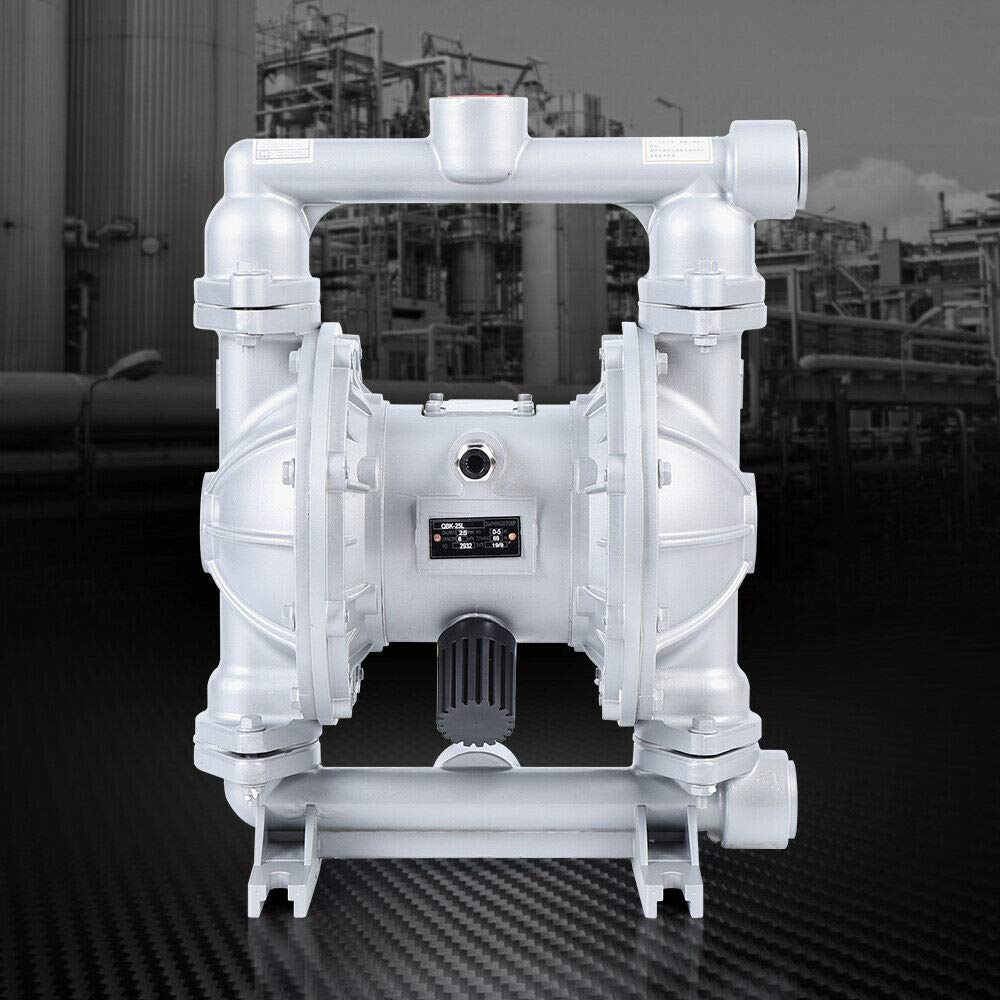

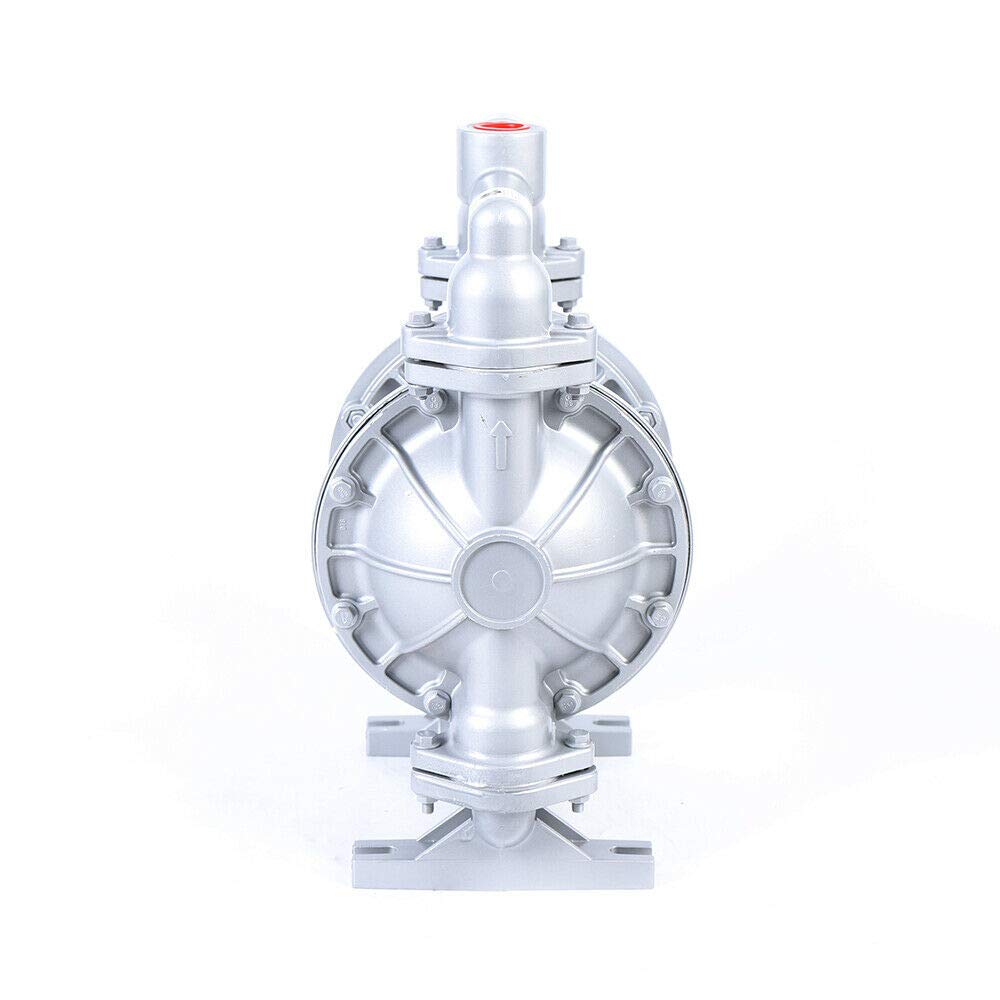

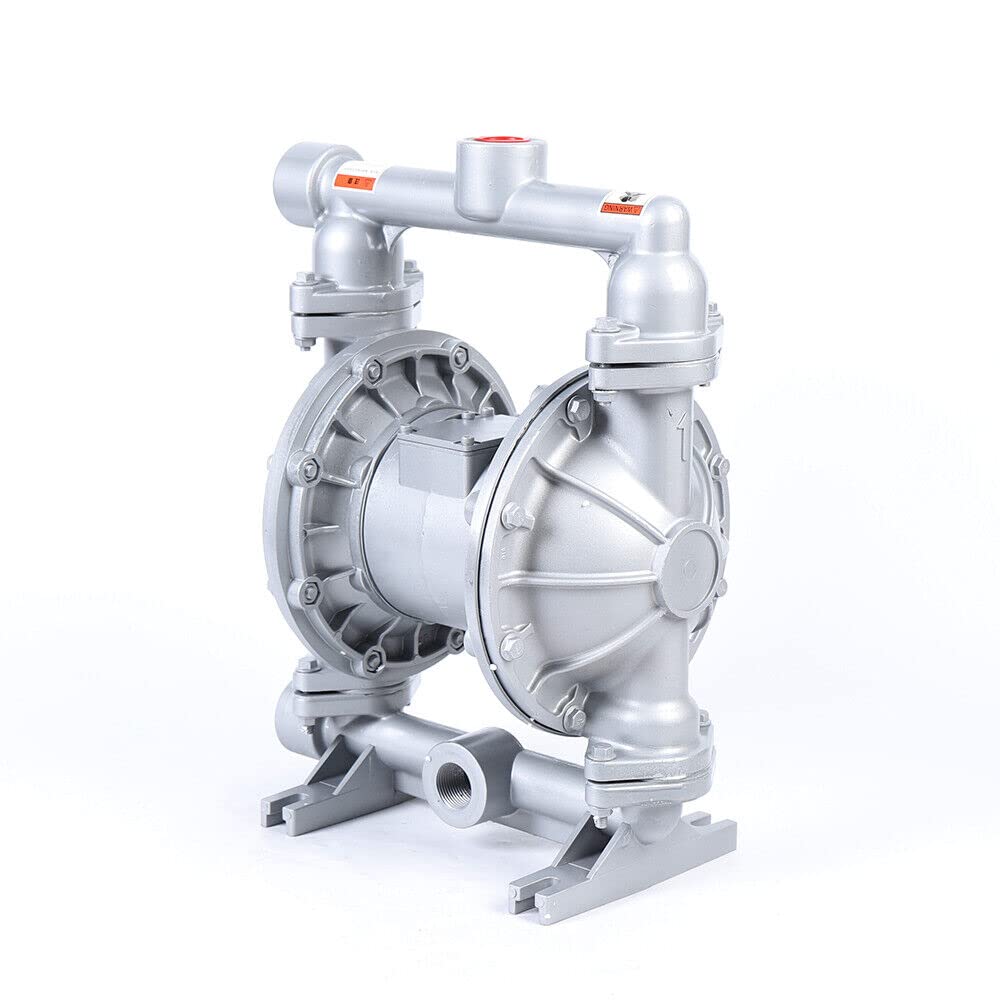

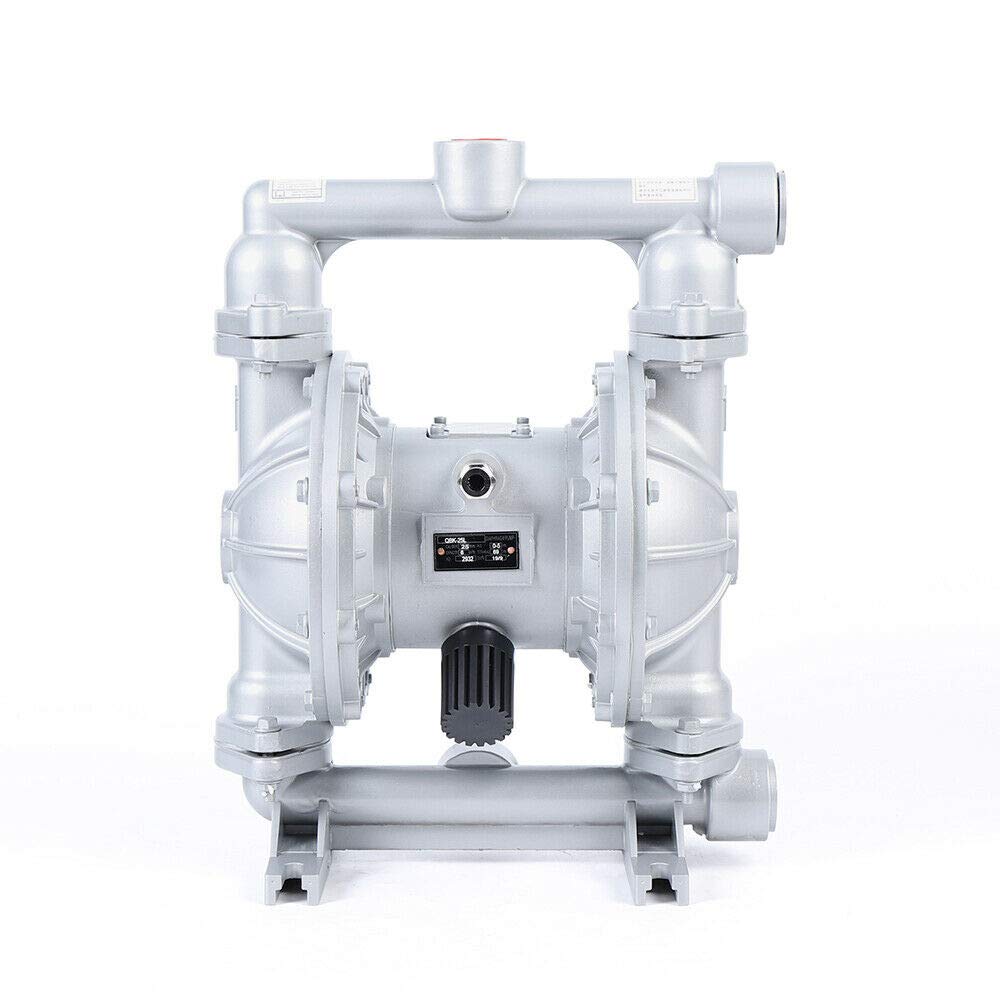

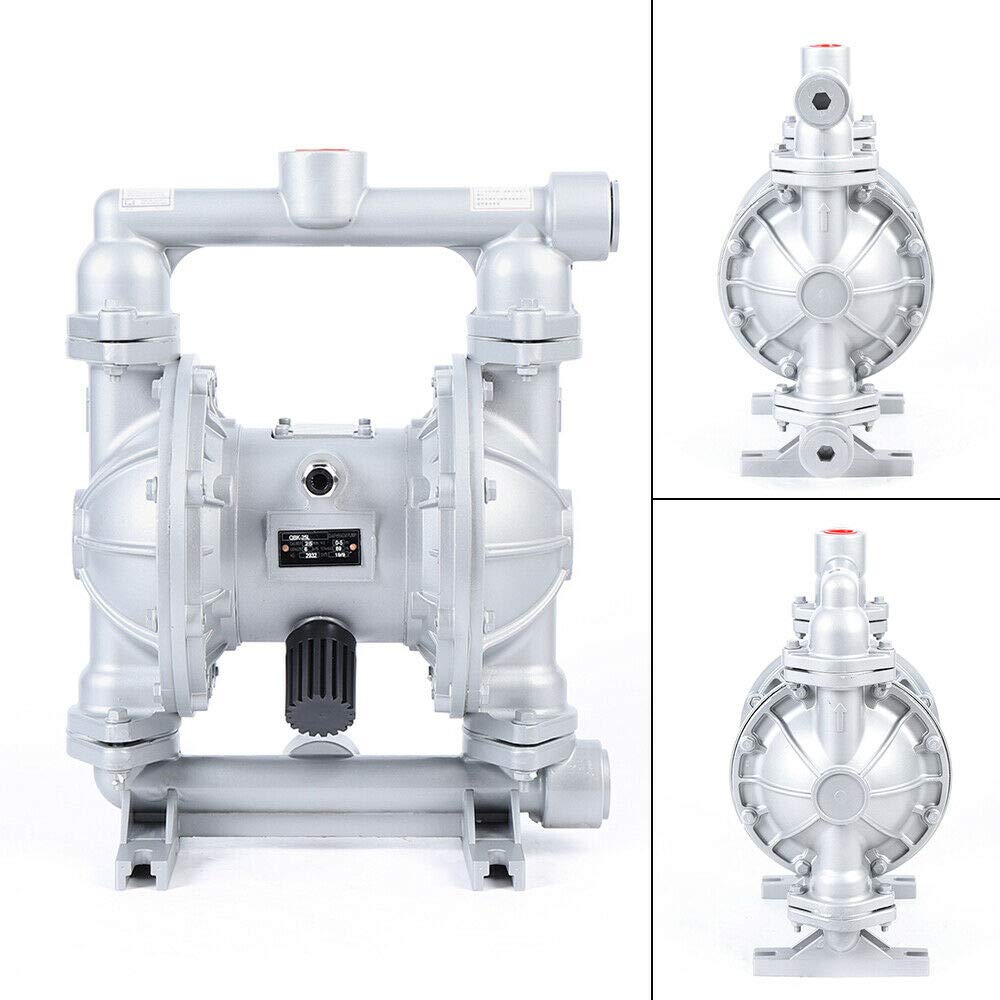

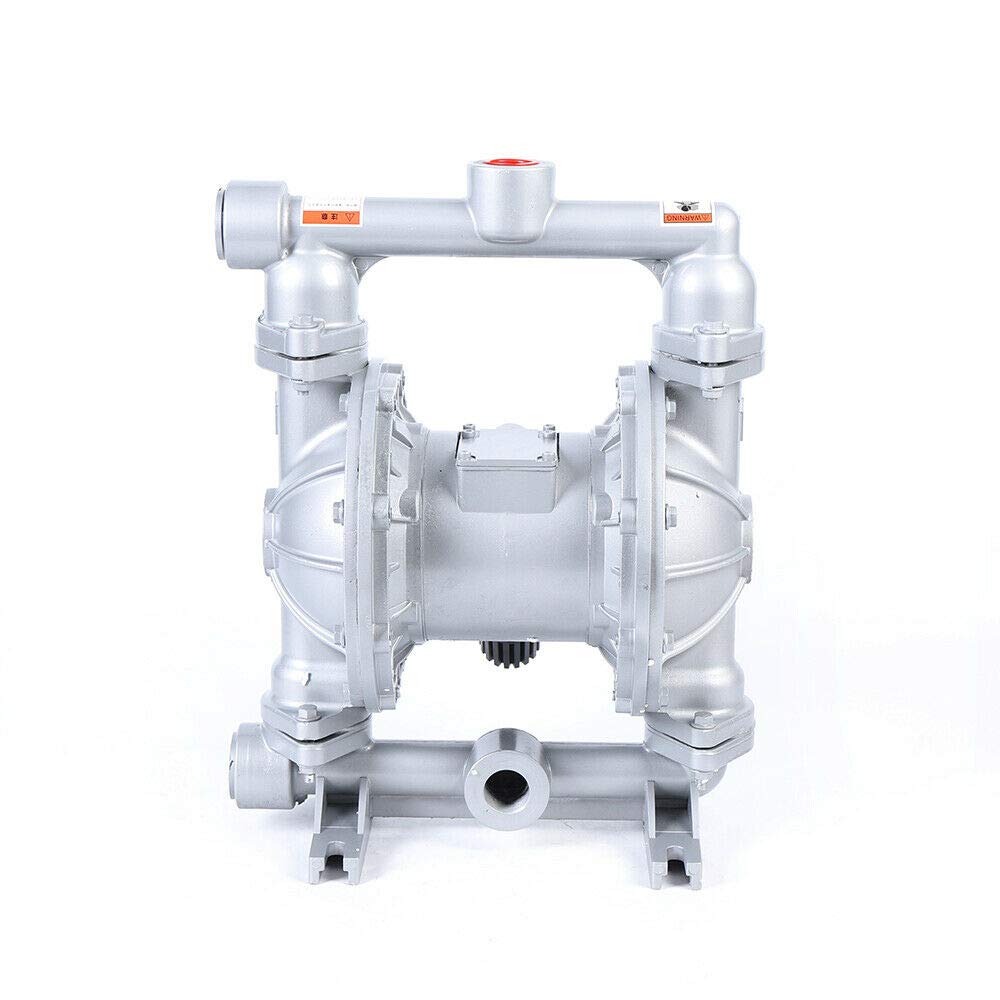

FeatureAir-operated double diaphragm pumpWith 1 inch inlet and outlet1/2 Inch air inlet1/8 Inch max diameter suspended solidsPerfect for use with waterIdeal for use with low viscosity petroleum fluidsSolid constructionSpecificationsProduct: Diaphragm pumpType: Air-operated double diaphragmModel: QBK-25LInlet Port: 1 inch (25 mm)Outlet Port: 1 inch (25 mm)Air Inlet Size: NPT 1/2 inch (12.7 mm)Average Air Consumption: 9 CFMMax Flow rate: 6 m3/h (24 GPM)Suction: 0-5 m (0-16.4 ft)Max Suspended Solids: 3 mm (1/8 inch)Max Head: 69 m (226.38 ft)Max. PSI: 115Operating PSI: 29-115Max Fluid Temp.: 80 ℉Product Dimension: 35 x 23 x 46 cm (14 x 9 x 18 inch)Package Size: 38 x 28 x 49 cm (14.96 x 11.02 x 19.29 inch)Gross Weight: 16 kg (35.27 lbs)Package Content1 x Air-Operated Double Diaphragm Pump1 x Product Manual
Superior Performance：24 GPM Air-Operated Double Diaphragm Pump with 1" Inlet and Outlet. This powerful air-operated double diaphragm pump operates from 29 to 115 PSI. Has 1 inch. Inlet and 1 inch. Outlet capable of pumping at up to 24 gallons per minute at temperatures up to 80 degrees Fahrenheit
Diaphragm Pump：is a positive displacement pump that combines the reciprocating motion of a rubber, thermoplastic or teflon diaphragm with suitable valves on both sides of the diaphragm (check valve, butterfly valve, flap valve) or any other form of shut-off valve) to pump fluid
Product Specifications：Inlet Port 1 inch (25 mm), Outlet Port 1 inch (25 mm), Air Inlet Size NPT 1/2 inch (12.7 mm), Max Flow rate 6 m3/h (24 GPM) , Operating PSI 29-115, Max Fluid Temp. 80 ℉
Application：Perfect for use with water. Suitable for low viscosity petroleum fluids including d-i-e-s-e-l, kerosene, motor oil and some waste oils
Package Content ：1 x Air-Operated Double Diaphragm Pump ,1 x Product Manual
